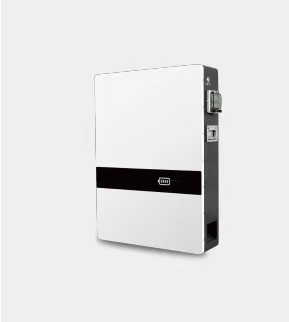

该电池是适用于家庭储能、家庭光伏的电池系统。可在监控系统中设置充放电限流、定电压输出、直接输出等工作模式，更拥有多重保护功能。
部署灵活
全新磷酸铁锂A品电芯
循环寿命6000次/10年
防护等级IP65适用于室内外安装
智能电芯平衡
充电和静平衡策略可灵活设置
有效延长寿命
多重保护功能
多种规格
10kWh / 20kWh / 30kWh / 40kWh
额定电量 | 10.44kWh | 额定电压 | 51.2V |
充电电压 | 58.4V | 放电电压范围 | 44.8-58.4V |
最大充电电流 | 100A | 持续充电电流 | 100A |
推荐充电电流 | 150A | 持续放电电流 | 100A |
最大放电电流 | 10440W | 额定输出功率 | 5120W |
DOD | 85% | 寿命 | ≥6000 25℃ 0.5C |
连接方式 | 1-8in parallel | 通讯方式 | CAN / RS485 |
工作温度 | 充电：0℃ ~ +55℃ 放电：-10℃~+55℃ | 存储温度 | -10℃ ~ +35℃ |
净重（kg） | 96kg | 毛重（kg） | 125kg |
产品尺寸（mm） | 790*560*200mm | 包装尺寸（mm） | 950*720*400mm |
在特定条件下，当温度低于0℃或高于40℃时，性能将受到限制。最终参数来自不同的产品批次，该参数仅供参考。
This battery is a battery system suitable for home energy storage and home photovoltaics. It is possible to set charging and discharging current limiting, fixed voltage output, direct output and other working modes in the monitoring system, and has multiple protection functions.
Flexible deployment
Brand new iron phosphate A-grade battery cell
Cycle life 6000 times/10 years
Protection level IP65, suitable for indoor and outdoor installation
Intelligent battery cell balance
Flexible setting of charging and static balance strategies
Effectively extending service life.
Multiple protection functions
Multiple specifications
10kWh / 20kWh / 30kWh / 40kWh
Operation Parameters
Specification Parameters | LST-W10000 | Rated Electric Quantit | 10.44kWh |
Rated Voltage | 51.2V | Charging Voltage | 58.4V |
Discharge Voltage Range | 44.8V-58.4V | Maximum Charging Current | 100A |
Continuous Charging Current | 100A | Recommended Charging Current | 150A |
Continuous Discharge Current | 100A | Maximum Discharge Current | 10440W |
Rated Output Power | 5120W | DOD | 85% |
Connection Method | 1-8in parallel | Communication Method | CAN / RS4 85 |
Life | ≥6000 25℃ 0.5C | Storage Temperature | -10℃ ~ +35℃ |
Charging Operating Temperature | 0℃ ~ +55℃ | Discharge Working Temperature | -10℃ ~ +55℃ |
Mechanical Parameters
Net Weight (kg) | 96kg | Gross Weight (kg) | 125kg |
Product Size (mm) | 790*560*200 mm | Package Size (mm) | 950*720*400 mm |
Under specific conditions, performance will be limited when the temperature is below 0℃ or above 40℃. The final parameters come from different product batches. This parameter is for reference only.
